Using Lookup Tables

A lookup table is a CSV file that has enrichment data and can be any set of fields that you want to correlate with an event log field, enabling the lookup table data to enrich Search results.

For example, the eventlog lookup table empowers AQL Views and Security Analytics to map Anomali's event log schema to different event fields from varied event log sources.

When Schema RBAC is active for your organization, the schema filters in your assigned roles determine which data this feature returns. An eventlog filter limits your results to only the eventlog data your role permits, and an OCSF filter limits your results to only the OCSF data your role permits. If a query runs against a schema for which your role has no filter assigned, the query returns a forbidden error. For details, see Role-Based Access Control for Schemas.

Anomali offers and supports two types of lookup tables:

  • System lookup tables: These are lookup tables that Anomali offers out of the box. See Anomali System Lookup Tables for more information.

  • Custom lookup tables: Anomali allows you to create your own lookup tables for downstream applications.
    To learn how to create a custom lookup table, refer to Creating Custom Lookup Tables .
    To learn how to view, append, update, export, or delete custom lookup tables, refer to Managing Custom Lookup Tables.

To access all lookup tables available to your organization, navigate to Search > Lookup Tables.

Search: Enter the lookup table name that you want to find. You can also search by name, description, modified by, created by, or owner, with the search being incremental, that is, results update as you type.

Filter by owner: You can filter lookup tables by owner. Possible values include:

  • Mine: returns tables for which you are the owner.

  • System: returns out-of-the-box tables, that is, tables that are owned by nobody and that cannot be changed.

  • Not System: returns tables that are not owned by system, such as tables created by a user.

  • <user>: returns tables where the selected user is the owner.

Note: A user can always only view and edit tables they own. See User Sharing and Permissions for more information.


Filter by tag: Filter the lookup table list by one or more resource tags.

  • The drop-down shows only tags you own or that are shared to your organization. Organization administrators can also see private tags owned by other users.

  • Selecting multiple tags returns only lookup tables that have all selected tags applied.

  • Click Clear tags to remove the filter.

  • The count next to each tag shows how many lookup tables have that tag applied, not the total across all the supported resource types.

See Managing Custom Lookup Tables for details.

Name: Name of the lookup table.


Tags: Apply one or more resource tags to the lookup table.

  • The auto-complete suggestion shows tags you own and tags shared to your organization. Private tags associated with other users are not shown, except to organization administrators.

  • To apply an existing tag, type in the field and select it from the auto-complete suggestion results.

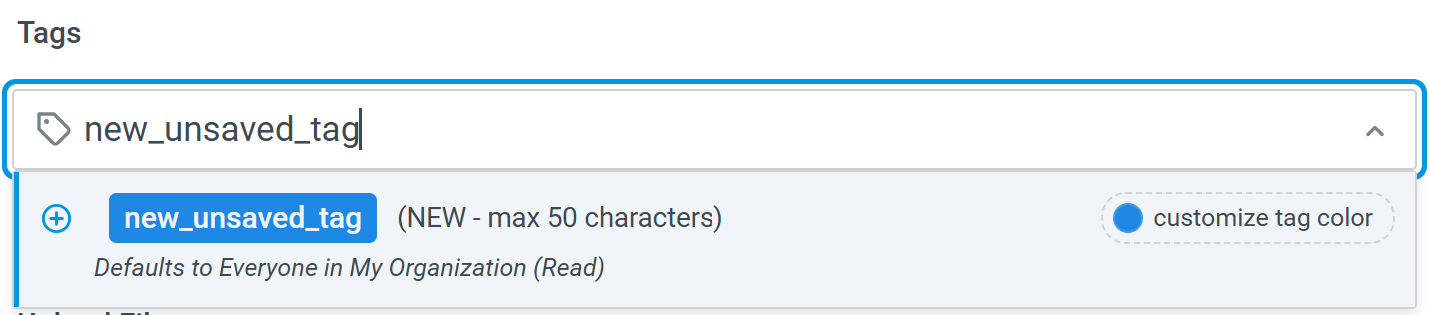

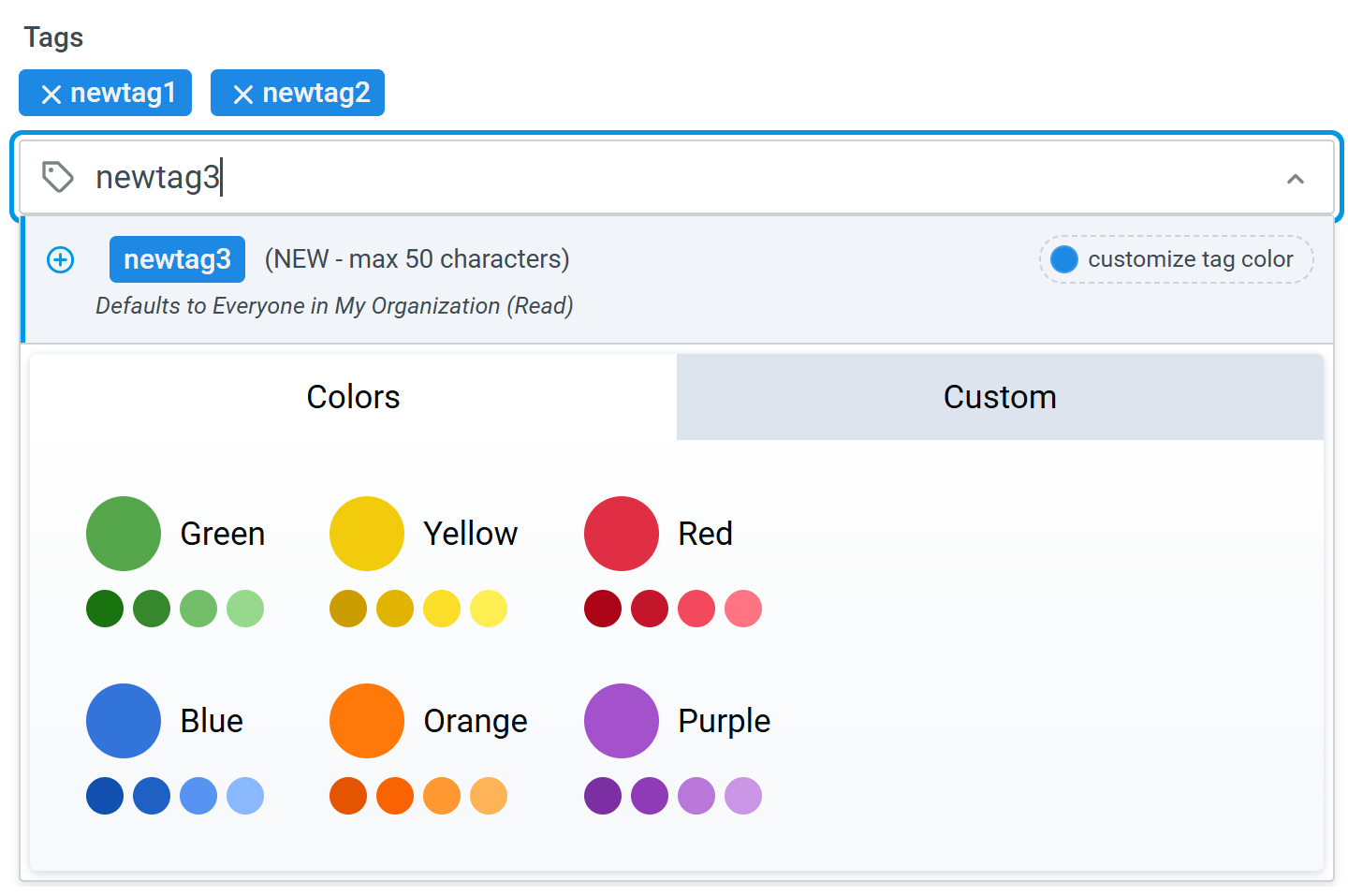

  • To create a new tag, type a name that does not match any existing tag and confirm the selection. A color picker appears so you can choose a tag color before the tag is created.

  • After selecting the color, click the add icon () to add the tag to the lookup table as well as the shared tag catalog. A new tag is added to the shared tag list immediately, even if you abandon creating or editing the lookup table.

  • New tags default to Everyone in My Organization (Read). You can change this later from the Resource Tags settings page

  • Applied tags render as colored chips. Click the cross icon (×) on the tag chip to remove the tag from the lookup table. This does not delete the tag from the catalog. Any user with edit access to the saved search and visibility to a tag can remove the tag.

  • To filter the list by tag, see Managing Custom Lookup Tables.

Note: Users with read-only permission on a lookup table can view applied tags but cannot add or remove them. Only tag owners and users with write permission can add or remove tags. See Resource Tagging Permissions for more information.

Updatable: Whether the lookup table is updatable.

Row Count: Number of rows in the table.

Status: View the activation status of the lookup table:

  • Active: An active status indicates that the table has been created and is ready to be used in Search. You cannot activate a lookup table.

  • Inactive: An inactive status indicates that activation is not yet completed.

Owner: Indicates the owner of the lookup table. By default, the creating user is the owner and is private (not shared). The owner can:

  • Modify all lookup table details.

  • Configure sharing or permissions granted to users.

  • Edit can delete the table.

Note: A user can always only view and edit tables they own. See User Sharing and Permissions for more information.

Created By: Email address of the user that created the lookup table. A user can always only view and edit tables they own.

Created: Denotes the timestamp of when the table was created.

Modified By: Refresh the list of lookup tables.

Modified: Denotes the timestamp of when the table was modified.

New: Create a new lookup table. Refer to Creating Custom Lookup Tables for details.
  (Optional) Enter a description for the lookup table.

User Sharing and Permissions

All users can always view and edit lookup tables they own. They can see only lookup tables they are entitled to view, based on the permissions granted under the Sharing & Permissions tab.

If the Sharing & Permissions settings are configured as:

  • Private: Only the owner of the lookup table can view and edit the table. By default, if no sharing is specified, the lookup table is private.

  • Shared: Users with specified roles can view and edit the lookup table, according to their assigned permissions

Users with roles granted read permissions:

  • Can view, clone, and export lookup tables they own. Can only view, and cannot edit, the tables they do not own.

Users with roles granted write permissions:

  • Can modify the lookup table, but not sharing or permission rights.

  • Can use the yieldtable operator, as it supports ownership and sharing parameters.

Users who own the lookup table:

  • Can perform all actions, including editing ownership and permissions of the dashboards they own.

  • If no sharing is specified, by default, the lookup table is private (not shared).

Organization Administrators

Can perform all actions, including editing ownership and permissions of any dashboard.

Referencing Lookup Tables in AQL Search:

  • Only visible lookup tables can be referenced.

  • Auto-complete feature does not expose lookup tables to which you lack access.

  • Structured search also does not expose lookup tables to which you lack access.

  • Lookup tables can be joined with both eventlog and OCSF queries. See OCSF Schema Overview for more information about OCSF queries.

Example: Joining OCSF Data with a Lookup Table

You can enrich OCSF queries by joining them with lookup tables. The following example joins OCSF network activity data with a custom lookup table containing known malicious IPs:

Copy
| from malicious_ips
| join type=inner (
    | from eventlog
    | where event_type = "network"
) on src_ip = ip
| fields event_time, src_ip, dest_ip, threat_category, confidence
