IOC Match Activity Searches

Search the IOC Match index to examine events logs that matched the indicators of compromise (IOC) provided by your threat intelligence feeds.

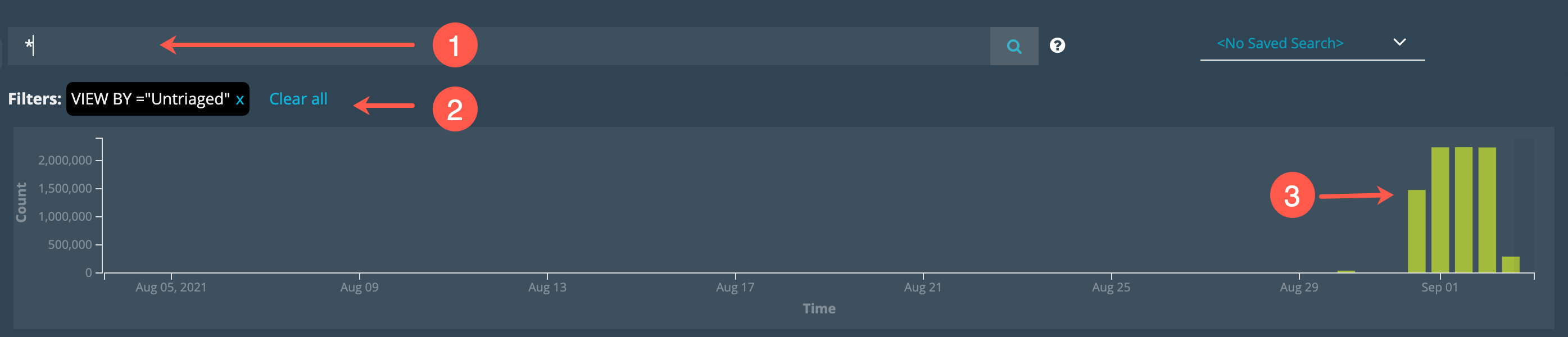

	Search text box: Specify a keyword or field-based search expression. Keyword searches match any field. Specify field-based name-value pairs for more precise targeting.
	Applied Filters: Review and clear filters.
	Matches Timeline: Click a bar to filter by date. Click and drag over two or more bars to set a date range filter.

About IOC Match Searches

Your organization subscribes to ThreatStream intelligence feeds that make up the set of IOCs that your organization is interested in tracking. The set of indicators are correlated with event logs when the logs are ingested. The correlated rows have both the event log fields and the threat intelligence fields. This enriched data set facilitates security analyst investigations.

During correlation, Security Analytics identifies indicators in newly received event logs. The event logs may include events forwarded from recent activity or from activity that occurred during a backfill period, depending on your Link configuration. A backfill period is an optional setting that enables the Anomali Link to ingest events from a time period before the Link was set up and activated.

IOC Match index searches are vast, but the Activity workbench has tools that make it easy for you to refine search attributes and get a targeted set of results. You can use the filter user interface (UI), as well as more advanced field-based filter expressions.

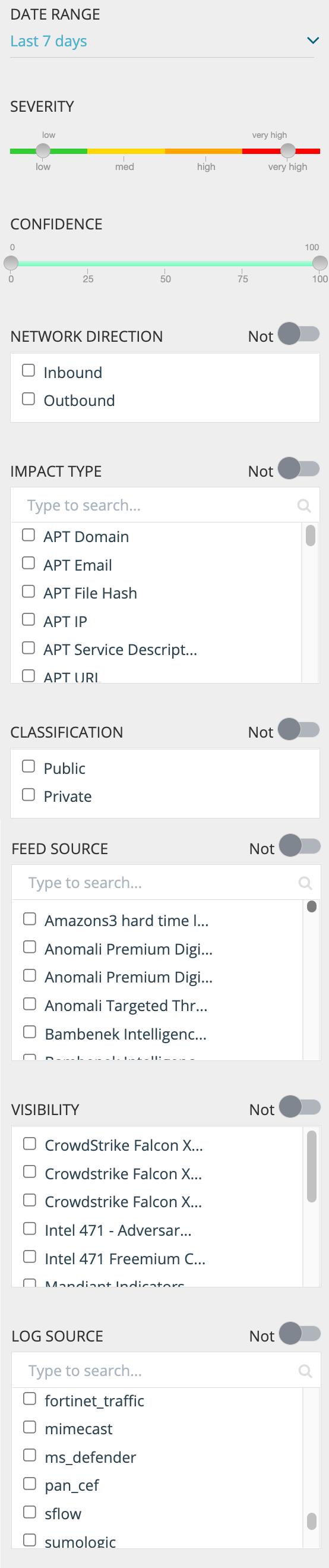

Filter UI

You can use the filter UI to apply the following filters to your search:

Date Range
Select a time period, a relative expression, or a date range. The time period filter is based on event time; in other words, the timestamp in the event log.
Severity
Use the slider to specify an event severity range or drag both ends of the slider to a single severity to filter on just one. Event severity is determined by the indicator that matched the event log.
Confidence
Use the slider to specify a confidence score range. Confidence score indicates the certainty that an observable exhibits or is connected to malicious behavior. Confidence score is set by a ThreatStream machine learning algorithm that takes many factors into account, but can be overridden by analysts.
Network Direction
Filter by Inbound or Outbound. Inbound and outbound are designated from the perspective of the event log source.
Impact Type
Select an impact type. Impact type refers to the impact designated by the intelligence feed.
Classification
Filter according to the classification designated by the intelligence feed.
Feed Source
Select one or more intelligence feed sources.
Visibility
Select one or more trusted circle names. Trusted circles are organizations with which the ThreatStream observable is shared.
Log Source
Select one or more event log sources.

Note: You can use negation in search expressions by selecting the NOT operator next to the filter heading. For example, to use negation with Log Source, select the sources you do not want to search and toggle on the NOT operator next to the Log Source filter heading.

Advanced Filter Expression Examples

The following are a few example filters:

state = active AND domain startswith "qq.*"

state = active AND domain contains "*.ru"

state = active AND detail=mirai

state = active AND confidence >= 90

state = active AND confidence >= 90 AND itype = "apt_ip"

state = active AND confidence >= 90 AND (severity = "high" OR severity = "very-high")

state = active AND confidence >= 90 AND (itype = "apt_ip" OR itype = "bot_ip" OR itype = "c2_ip")

state = active AND confidence >= 70 AND (itype startswith "apt" OR itype startswith "mal" OR itype startswith "c2")

state = active AND confidence >= 75 AND itype != bot_ip AND itype != actor_ip AND itype != brute_ip

state = active AND ((itype != "bot_ip" AND confidence >= 75) OR (itype = "bot_ip" AND confidence >= 99)) AND classification = "public"

state = active AND event_time >= "2019-01-01T00:00:00"

state = active AND event.src insubnet "172.18.177.0/24"

state = active AND (itype=proxy_ip AND indicator insubnet "70.183.48.0/24")

NOT indicator insubnet "70.183.48.0/24"

trusted_circle_ids in [10028, 10029, 10030, 10031]

(confidence>=60) AND NOT trusted_circle_ids in [123, 456, 789, 890, 901, 121, 324, 356, 677, 888]

event.event_name != DnsRequest

String list:

itype in ["scan_ip","c2_domain", "c2_ip"]

Numeric list:

source_feed_id in [312, 274]

For include list information:

tags="anomali-include-list-ip"

tags="anomali-include-list-domain"

Filter Operators

The following table describes the logical operators you can use to form complex field-based search expressions. Operator names are not case sensitive.

Field Type	Use this Operator
String	=, !=, contains, startswith, insubnet, in (for lists) Notes: The `startswith` operator matches any token in the field that starts with the pattern. For example, the expression `source startswith glass` matches a source field that has the value `Looking Glass C2 - IMDA`. The `insubnet` operator accepts a value in CIDR notation, enclosed in double quotes (" "). For example, "172.18.177.0/24" Use double quotes to escape special characters and spaces. Example: `itype in ["scan_ip","c2_domain", "c2_ip"]`
Numeric	=, !=, <, <=, >, >=, in (for lists) For example, `source_feed_id in [312, 274]` Note: The `in` operator does not accept float and double types.
Date	=, !=, <, <=, >, >=
Logical	AND, OR, NOT, (specify a parenthetical expression)

Filter Fields

In the search box, you can specify keywords or field-value pairs. Keyword searches match any field. Specify field-based name-value pairs for more precise targeting.

The IOC Match table contains three types of fields:

Event fields: These fields are part of the original event and are denoted by the prefix event.<field_name>. For example, event.dest denotes the destination IP or hostname of the event.
Asset fields: These fields are added to the original event by Anomali Security Analytics during correlation. The asset data source is the data your organization provides in scanner reports or CSV files uploaded to Anomali Security Analytics. Asset fields are denoted by the prefix asset_<field_name>. For example, asset_dest_ip denotes the IP address for an asset that was the destination in a logged event.
Enrichment fields: These fields are added to the original event by Anomali Security Analytics during correlation to provide additional intelligence context. For example, itype, which denotes the indicator type of the event.

The following table describes all of the possible IOC Match search fields. The fields listed in the first column correspond with results table column names. The field names listed in the second column are the fields you specify when you form field-based name-value pair search expressions.

Note: Not all fields are included as columns in the results table. When you search by fields without column names, you can locate the matching values in the details page. All of the fields listed in this table can be selected when you export results.

Column Name	Field Name	Type	Description
Age	age	Numeric	Indicates the age of the indicator in days. Event time - intel first seen A negative age value indicates that the event data was added to Anomali Security Analytics through backfill.
Link Type	app_type	String	Link type that generated the event. Possible values: `universal_link`, `splunk`
ASN	asn	String	Autonomous System Number (ASN) for the IP associated with the indicator.
	asset_dest_criticality	String	Criticality associated with the asset that is the destination of a logged event. Possible values: critical, high, medium, low
	asset_dest_dept	String	Assigned department for an asset that is the destination of a logged event. Examples: Engineering, Finance, HR, Labs, Marketing
	asset_dest_hostname	String	Host name for an asset that is the destination of a logged event. Examples: example.local, example-pc
	asset_dest_ip	String	IP address for an asset that is the destination of a logged event. Example: 192.0.2.1
	asset_dest_location	String	Assigned location for an asset that is the destination of a logged event. Example: Redwood City, CA
	asset_dest_vulnerability	String	Vulnerability CVE number associated with an asset that is the destination of a logged event. Examples: CVE-2021-21137, CVE-2019-3385
Criticality	asset_src_criticality	String	Criticality associated with the asset that is the source of a logged event. Possible values: critical, high, medium, low
Department	asset_src_dept	String	Assigned department for an asset that is the source of a logged event. Examples: Engineering, Finance, HR, Labs, Marketing
Hostname	asset_src_hostname	String	Host name for an asset that is the source of a logged event. Examples: example.local, example-pc
IP	asset_src_ip	String	IP address for an asset that is the source of a logged event. Example: 192.0.2.1
Location	asset_src_location	String	Assigned location for an asset that is the source of a logged event. Example: Redwood City, CA
Vulnerability	asset_src_vulnerability	String	Vulnerability CVE number associated with an asset that is the source of a logged event. Examples: CVE-2021-21137, CVE-2019-3385
Classification	classification	String	Indicates the confidentiality level of an indicator. Possible values: private, public Note: Private also includes Trusted Circles.
Confidence	confidence	Numeric	Score from 0 to 100, as reported by the threat feed provider.
Match Type	corr_type	String	iocmatch
Count	count	Numeric	Aggregated number of events that matched the search criteria.
Country	country	String	Two-letter ISO country code for the IP associated with the indicator. For example, US, CN, DE, and so on.
Created	date_first	Date	Timestamp of when the indicator was first seen by the threat feed provider. Notes: In the results table, the time displayed is UTC time, adjusted for the browser time zone. When you form search expressions, specify UTC time in the following format: <YYYY><MM><DD>T<HH>:<MM>:<SS>. The date part and the time part are separated by a capital T. You do not need to include T and the time values if you intend to search by date only. The following is an example of UTC time format: `2022-01-05T00:00:00` You can also specify a time zone offset for searches where time zone precision is important. In the following example, the time zone offset is the `-08:00` at the end: `2022-01-05T00:00:00-08:00` In exported results, the date and time are displayed as epoch time values. The following example shows the previous date-time example in epoch format: `1641342478`
Modified	date_last	Date	Timestamp of when the indicator was last seen by the threat feed provider. Notes: In the results table, the time displayed is UTC time, adjusted for the browser time zone. When you form search expressions, specify UTC time in the following format: <YYYY><MM><DD>T<HH>:<MM>:<SS>. The date part and the time part are separated by a capital T. You do not need to include T and the time values if you intend to search by date only. The following is an example of UTC time format: `2022-01-05T00:00:00` You can also specify a time zone offset for searches where time zone precision is important. In the following example, the time zone offset is the `-08:00` at the end: `2022-01-05T00:00:00-08:00` In exported results, the date and time are displayed as epoch time values. The following example shows the previous date-time example in epoch format: `1641342478`
	dcid	String	ID of the Link from which event was received.
Tags	detail	String	Comments and context associated with the indicator.
Action	event.action	String	Relevant for firewall and web proxy events Event log action taken by the source device; for example, `Deny`, `Accept`.
Answer	event.answer	String	Answers for the DNS query. Example: ["10.10.10.10","10.10.10.11"]
Application	event.app	String	The application detected. Example: Slack, Google Gmail, LinkedIn
Bytes In	event.bytes_in	Numeric	How many bytes received by a network interface. Example: 347
Bytes Out	event.bytes_out	Numeric	How many bytes transmitted by a network interface. Example: 665
Category	event.category	String	Relevant for AWS VPC and Microsoft Defender logs. Traffic direction: ingress or egress.
Command Line	event.command_line	String	The full command string of the spawned process. Example: `"\"procdump.exe\" -ma ls"`
Destination	event.dest	String	Event log destination data. The `event.dest` value populated from event logs is: An IP address—for example, `192.0.2.1`. A fully qualified domain name or registered domain name (second-level domain)—for example, `www.google.com` or `google.com`. Host and domain data extracted from URL data. For example, if Security Analytics receives an event log with a destination URL `http://www.example.com/somepath/34839/jk30jf`, Security Analytics populates `event.dest` with the extracted host and domain `www.example.com`. Indicators that have IP or Domain value types can match `event.dest` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.dest` values.
Destination IP	event.dest_ip	String	Event log destination IP address. The `event.dest_ip` value populated from event logs is an IP address—for example, `192.0.2.1`. Indicators that have IP value types can match `event.dest_ip` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.dest_ip` values.
Destination Port	event.dest_port	Numeric	Event log destination port. Event log destination port field. The value for `event.dest_port` is the port number from the destination host—for example, `80`.
Data Source ID	event.ds_id	Numeric	For Universal Link log sources, this is the log source configuration ID. For Splunk log sources, this field is not applicable.
Data Source Type	event.ds_type	String	Event log data source type. Examples: `az_sentinel`, `qradar`
Event ID	event.event_id	String	A Windows identification number that specifies the event type. Example: 4624
Event Name	event.event_name	String	The name of an event. Example: DnsRequest, ProcessRollup2
Filehash	event.file_hash	String	Event log file hash field. For example, an endpoint management application might write a log that contains file hash values. The `event.filehash` value populated from event logs is a hash value—for example, `69efa658c59d884c0cd6164cbb61d6d0cb0174355dc9c69327dfb76237c9c9c4`. Indicators that have Hash value types can match `event.filehash` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.filehash` values.
	event.file_hash2	String	A log might have multiple file hash fields.
	event.file_hash3	String	A log might have multiple file hash fields.
File Name	event.file_name	String	Event log field containing filepath.
File Path	event.file_path	String	The folder containing the file. Sigma name: FilePath Example: C:\Program Files (x86)\VMware\VMware Workstation
Originated Host	event.host	String	Event log hostname field. For example, for events ingested from Splunk Link, the value for `event.host` is the hostname of the Splunk indexer that forwarded the event.
HTTP Method	event.http_method	string	The HTTP method used in the request. Example: get, post, delete, patch
HTTP Referrer	event.http_referrer	string	The HTTP referrer used in the request. Example: https://example.com/ Note: Correlated with indicators of type url.
Image	event.image	String	The executable name of the process. Sigma name: Image, ProcessName, OriginalFileName, TargetImage, TargetFileName Example: svchost.exe
Message ID	event.message_id	String	The globally-unique message identifier. Example: 123e4567-e89b-12d3-a456-426655440000
Original File Name	event.original_file_name	String	Original name of the file that was changed. Example: "test.pdf"
Parent Command Line	event.parent_command_line	String	The full command string of the parent process. Example: C:\Windows\System32\svchost.exe -k WerSvcGroup
Parent Image	event.parent_image	String	The executable name of the parent process. Example: notepad.exe
Parent Process ID	event.parent_process_id	String	The numeric identifier of the process assigned by the operating system. Example: 4834
Platform	event.platform	String	The operating system of the asset. Sigma name: Platform Example: win, mac, linux
Process ID	event.process_id	Numeric	The numeric identifier of the process assigned by the operating system. Example: 3683
Protocol	event.protocol	String	Relevant for firewall and web proxy events Event log protocol field. The value for `event.protocol` is the network protocol used to make the connection to the source device—for example `http`.
DNS Query	event.query	String	The domain that needs to be resolved in a DNS query. Example: www.google.com Note: Correlated with indicators of type domain.
Email Receiver	event.receiver	String	Relevant for email-specific events Event log receiver field. The value for `event.receiver` is the receiver's email address, as specified in the To: field of the email—for example, `user@example.com`. Indicators that have Email value types can match `event.receiver` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.receiver` values.
Record Type	event.record_type	String	The DNS resource record type. Example: A, CNAME, MX, NS, PTR, AAAA
Registry Key	event.reg_key	string	Registry key that the recorded action was applied to. Sigma name: TargetObject Example: HKEY_LOCAL_MACHINE\SOFTWARE\RegisteredApplications
Registry Value Name	event.reg_value_name	string	Name of the registry value that the recorded action was applied to. Example: "Wordpad"
Registry Value Data	event.reg_value_data	string	Data of the registry value that the recorded action was applied to. Example: Software\Microsoft\Windows\CurrentVersion\Applets\Wordpad
Email Sender	event.sender	String	Relevant for email-specific events Event log sender field. The value for `event.sender` is the sender's email address, as specified in the From: field of the email—for example, `user@example.com`. Indicators that have Email value types can match `event.sender` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.sender` values.
Source Type	event.sourcetype	String	Source device type that generated the event.
Event Source	event.src	String	Event log source IP field. The `event.src` value populated from event logs is: An IP address—for example, `192.0.2.1`. A fully qualified domain name or registered domain name (second-level domain)—for example, `www.google.com` or `google.com`. Indicators that have IP type or Domain value types can match `event.src` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.src` values.
Source IP	event.src_ip	String	Event log source IP field. The `event.src_ip` value populated from event logs is an IP address—for example, `192.0.2.1`. Indicators that have IP value types can match `event.src_ip` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.src_ip` values.
Source Port	event.src_port	Numeric	Relevant for firewall and web proxy events Event log source port field. The value for `event.src_port` is the port number from the source device from which the connection was made—for example, `3022`.
Subject	event.subject	String	The subject of the message.
Event Time	event_time	Date	Event log timestamp field. The value for `event.time` is timestamp when the event was generated on the source device—for example, `2021-07-28T19:20:00`. Notes: In the results table, the time displayed is UTC time, adjusted for the browser time zone. When you form search expressions, specify UTC time in the following format: <YYYY><MM><DD>T<HH>:<MM>:<SS>. The date part and the time part are separated by a capital T. You do not need to include T and the time values if you intend to search by date only. The following is an example of UTC time format: `2022-01-05T00:00:00` You can also specify a time zone offset for searches where time zone precision is important. In the following example, the time zone offset is the `-08:00` at the end: `2022-01-05T00:00:00-08:00` In exported results, the date and time are displayed as epoch time values. The following example shows the previous date-time example in epoch format: `1641342478`
Title	event.title	String	Alert title (azure security alert).
URL	event.url.raw	String	Relevant for firewall and web proxy events Event log URL field. The value for `event.url` is populated from URL data having the form `http(s)://<FQDN (registered domain)>:[<port>]/[path]?[<query_params>]`—for example, `http://www.example.com:443/` or `http://www.example.com/somepath/34839/jk30jf`. Indicators that have URL value types can match `event.url` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.url` values.
User	event.user	String	Relevant for firewall and web proxy events Event log user field. The value for `event.user` is the username associated with an authenticated HTTP(S) connection request—for example, `user@example.com`.
User Agent	event.user-agent	String	Event log user agent field. The value for `event.user-agent` is user-agent directive data in an HTTP(S) connection request—for example, `Mozilla/5.0 (platform; rv:geckoversion) Gecko/geckotrail Firefox/firefoxversion`.
Indicator	indicator	String	Value of the indicator. This field contains the value that was matched and is always equal to the value of srcip, url, domain, md5, or email fields.
IOC Type	indicator_type	String	Data type of the indicator. Possible values: ip, domain, url, email, md5
iType	itype	String	Indicator type. For example, c2_ip, compromised_email, apt_md5, and so on. See ThreatStream Indicator Types for a complete list of available indicators.
Latitude	lat	Numeric	Latitude associated with the Geo location of the IP. The value displayed is rounded up to the nearest thousandth decimal place. For example: 32.789. Note: Search results are based on non-rounded values, so you might observe anomalous search results, such as a search for `lat = 32.789` does not return a result showing a result value `32.789` but a search for `lat <= 37.789` does show a result for `32.789`. Be aware that rounding produces such minor anomalies.
Longitude	lon	Numeric	Longitude associated with the Geo location of the IP. The value displayed is rounded up to the nearest thousandth decimal place. For example: 16.366. Note: Search results are based on non-rounded values, so you might observe anomalous search results, such as a search for `lon = 16.366` does not return a result showing a result value `16.366` but a search for `lon <= 16.366` does show a result for `16.366`. Be aware that rounding produces such minor anomalies.
Malware Family	malware_family	String	One or more public malware family names expected to have originated the domain. Note: Malware families are often known by multiple names or aliases. The name shown in the Anomali Security Analytics UI is one of those names or aliases.
	originator	Numeric	Indicates whether the connection was inbound or outbound 0 indicates inbound 1 indicates outbound
Severity	severity	String	Severity associated with the threat feed that supplied the indicator. Possible values: low, medium, high, very-high Note: The search index is tokenized. This means the text is broken down into individual terms during indexing to allow for partial matching. For example, searches for `severity=high` returns matches for both `high` and `very-high`. If the tokenized search behavior returns unexpected results, you can form your search expression for this field using `fieldname.raw`. For example, if you want results for `high`, not including `very-high`, specify `severity.raw=high`. For more information, see Getting Started with Activity Search.
Source	source.raw	String	Name of the feed provider or organization that reported the indicator.
Feed	source_feed_id	Numeric	Identifier associated with the feed that contained the indicator.
Event Source Host	src_host	String	An event source host value derived from asset_src_hostname, event.src, or event_ip fields, in that order. The hostname provided by the asset enrichment would be most readable, so if it data exists for it, it is used. If not, then the other source fields are evaluated.
State	state	String	Current state of the indicator as reported by the threat feed. Possible values: active, inactive, falsepos
	trusted_circle_ids	Numeric	ID of the Trusted Circle with which this threat intelligence is shared on ThreatStream. To find a trusted_circle_ids value to use for Security Analytics search: In ThreatStream, go to Manage > Trusted Circles. Click the link in the Name column to display the Observables search page filtered for the selected Trusted Circle. The URL parameter shows the Trusted Circle ID. For example, the following screenshot shows Trusted Circle ID 11189: In Security Analytics results, the Visibility field on the Details page lists trusted circles data.

IOC Match Results Table

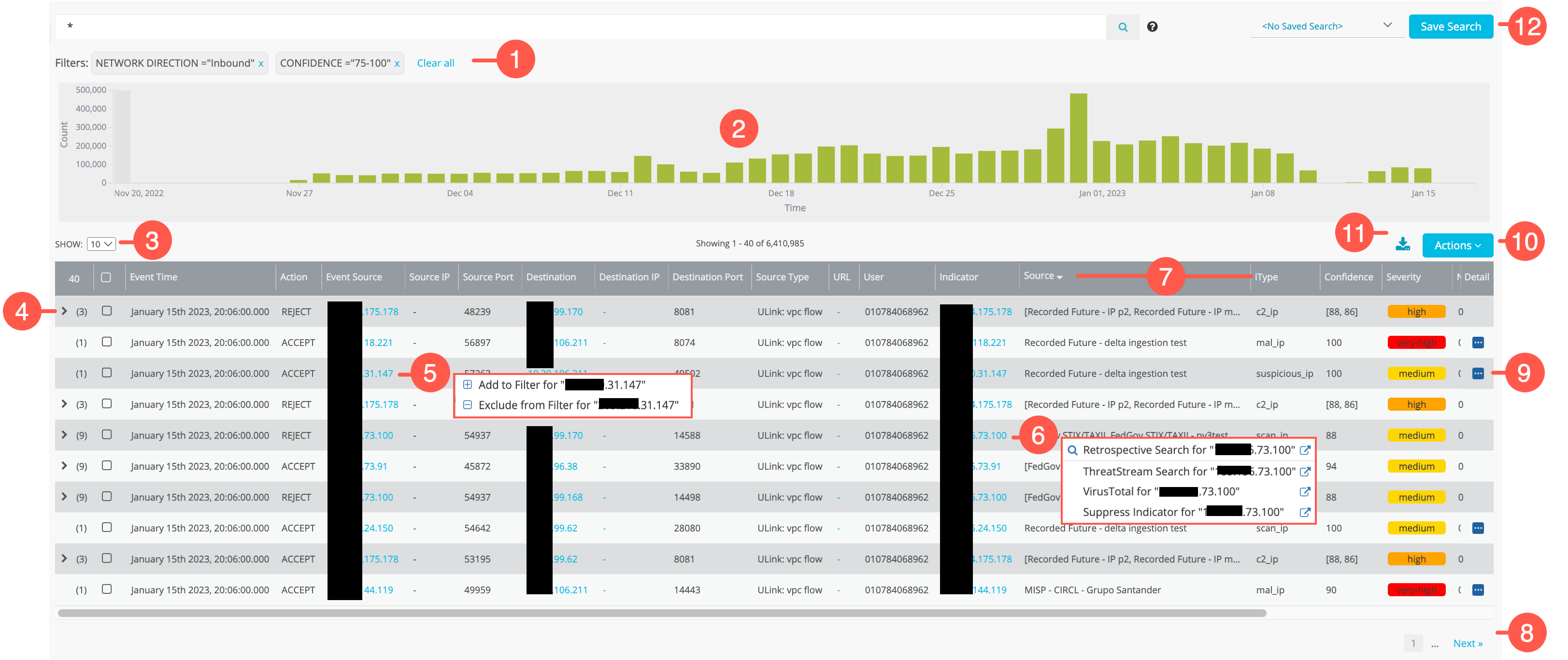

The following figure identifies the UI elements that you use to manipulate the displayed results to find information about IOC matches.

(Click the image to enlarge it.)

	Review and reset applied filters.
	Observe the graph of matches over time. Click a bar to filter by date. Click and drag over two or more bars to set a date range filter.
	Select a number of rows per page.
	The leftmost column shows the aggregation count for the result row. Click the expander > icon to display the individual result rows. Rows are aggregated when the following fields are identical: `event_time`, `event.action`, `event.src`, `event.src_ip`, `event.src_port`, `event.dest`, `event.dest_ip`, and `event.dest_port`. This occurs when an event log matches more than one indicator or when an indicator has multiple intel source feeds.
	Option-click a value and select an option to apply a filter that requires or excludes rows matching the value. Not all fields support filtering from the results grid.
	Click a hyperlinked value and select an option to search ThreatStream, search VirusTotal, run a retrospective search, or add the field value to a Security Analytics Exclude List. The availability of options depend on the data. For example, you can add an indicator value to the Suppressed Indicators list; you can a destination IP address for IP addresses in your local network to the Asset Exclude list.
	Click the column header to sort the rows in ascending or descending order according to values in the column. Click a column header divider and drag it to make a column wider or more narrow.
	Go to the next page of results or another page by page number.
	Display the Details page for the matched event. See View Match Details.
	Perform an action related to the selected row. See Perform Actions.
	Export the results table. See Export Search Results.
	Create a Saved Search configuration. See Saved Searches.

Perform Actions

The Action menu above the results table allows you to perform the following actions.

Action	Description
Configure Fields	Select this option to configure the fields (columns) that appear in the results table.
Retrospective Search	Select this option to perform a retrospective search for the indicator correlated with the event.
Investigate	Select this option to add the result to a ThreatStream investigation. Configure one of the following choices: Create Investigation: Specify a name for the investigation and select an assignee to create a ThreatStream investigation. Add to Investigation: Search or browse to find and then select a ThreatStream investigation. Note: For information about ThreatStream investigations, refer to the ThreatStream online help.
Suppress Indicators	Select this option to add the indicator to the indicator exclude list.

View Match Details

Click the Details icon in the right-most column to display the details page.

The following figure identifies the UI elements that you use to find information on the IOC Match Details page.

	Open ThreatStream to view ThreatStream reports about the indicator.
	Review the indicator details and event details correlated in Security Analytics.
	Use the tabs to learn more: Asset: View correlated asset details (if applicable). Raw Logs: View more event data. When you click Get Raw Logs: Security Analytics sends a drilldown query to log sources that support drill down queries. The source sends the raw log in response. Raw logs are available as long as they remain available on the log source system. Security Analytics retrieves event log data from Security Analytics storage for log sources that do not support drilldown queries. The fields in logs stored in Security Analytics have been normalized to Security Analytics event fields. Security Analytics returns no results if the associated Anomali Link is inactive.
	Use the tabs to review associated ThreatStream threat model entities and investigations.
	Click Actions and select Add to Investigation to add the log to a ThreatStream investigation. Note: For information about ThreatStream investigations, refer to the ThreatStream online help.
	Click the X to exit the details page and return to the results table.
