DGA Match Activity Searches

Search the DGA Match index to examine events logs that matched domains deemed likely Domain Generated Algorithm (DGA) domains.

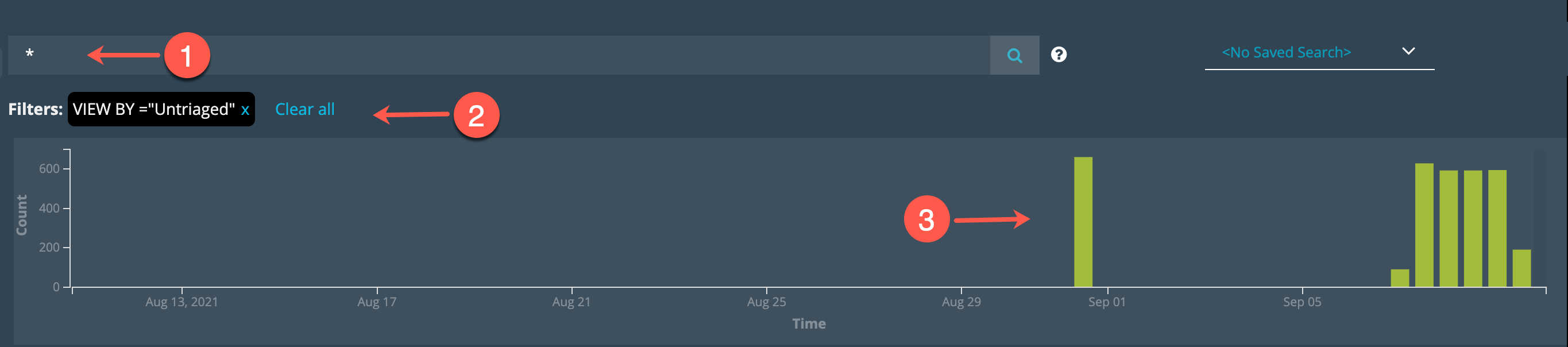

	Search text box: Specify a keyword or field-based search expression. Keyword searches match any field. Specify field-based name-value pairs for more precise targeting.
	Applied Filters: Review and clear filters.
	Matches Timeline: Click a bar to filter by date. Click and drag over two or more bars to set a date range filter.

About DGA Match Searches

Anomali Security Analytics automatically processes domain names (contained in the host names and URLs) in the events received from your network to determine the likelihood of these being DGA domains. The Anomali Security Analytics DGA processor uses machine learning to calculate the probability of a domain in an event being a DGA domain. Domains with a probability of 60% or higher are considered "likely DGAs". The Security Analytics DGA processor further corroborates the state of a domain against other data sources before classifying the domain state as active or benign. An active domain has a high probability as generated with a DGA, while a benign domain is most likely not generated by a DGA.

Security Analytics generates matches for active DGA domains. The machine learning engine continuously updates the state of a domain as Security Analytics ingests domain information.

Anomali Security Analytics does not generate DGA matches for domains determined to be benign or false positives.

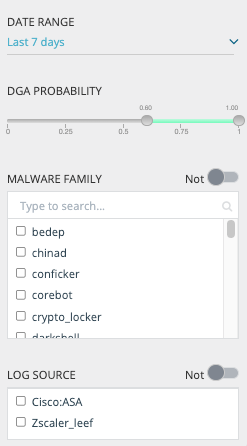

Filter UI

You can use the filter UI to apply the following filters to your search:

Date Range
Select a time period, a relative expression, or a date range. The time period filter is based on event time; in other words, the timestamp in the event log.
DGA Probability
Use the slider to specify a DGA probability range.
Malware Family
Malware family is a name given to multiple file artifacts that have significant code similarities and are distinct enough from other groups of known malware. Malware families are often known by multiple names or aliases. Select one or more malware families.
Log Source
Select one or more event log sources.

Note: You can use negation in search expressions by selecting the NOT operator next to the filter heading. For example, to use negation with Log Source, select the sources you do not want to search and toggle on the NOT operator next to the Log Source filter heading.

Filter Examples

The following are a few example filters:

dga_prob >= .80

dga_prob > 0.5 AND dga_prob < 0.8

state = active AND event.dest = "qukaheylka.xyz"

event.url.raw="http://tsrs.pw/"

event.user="barbe_meletius@live.com"

malware_family startswith conficker

malware_family in ["Gameover_DGA", "Emotet.c"]

event.sourcetype contains cisco

dga_prob >= .80 and event.sourcetype != cisco

dga_prob >= .80 and (event.sourcetype = Zscaler or leef)

dga_prob >= .80 and ((event.sourcetype = Zscaler or leef) and (user !="user6@acme.com"))

Filter Operators

The following table describes the logical operators you can use to form complex field-based search expressions. Operator names are not case sensitive.

Field Type	Use this Operator
String	=, !=, contains, startswith, insubnet, in (for lists) Notes: The `startswith` operator matches any token in the field that starts with the pattern. For example, the expression `source startswith glass` matches a source field that has the value `Looking Glass C2 - IMDA`. The `insubnet` operator accepts a value in CIDR notation, enclosed in double quotes (" "). For example, "172.18.177.0/24" Use double quotes to escape special characters and spaces. Example: `itype in ["scan_ip","c2_domain", "c2_ip"]`
Numeric	=, !=, <, <=, >, >=, in (for lists) For example, `source_feed_id in [312, 274]` Note: The `in` operator does not accept float and double types.
Date	=, !=, <, <=, >, >=
Logical	AND, OR, NOT, (specify a parenthetical expression)

Filter Fields

The DGA Match table contains two types of fields:

Event fields: These fields are part of the original event and are denoted by the prefix event.<field_name>. For example, event.dest denotes the destination IP or hostname of the event.
Enrichment fields: These fields are added to the original event by Anomali Security Analytics during correlation to provide additional intelligence context. For example, itype, which denotes the indicator type of the event.

The following table describes all of the possible search fields. The fields listed in the first column correspond with results table column names. The field names listed in the second column are the fields you specify when you form field-based name-value pair search expressions.

Note: Not all fields are included as columns in the results table. When you search by fields without column names, you can locate the matching values in the details page. All of the fields listed in this table can be selected when you export results.

Column Name	Field Name	Type	Description
Age	age		Does not apply to the DGA Match index.
	app_type	String	Link type that generated the event.
ASN	asn		Does not apply to the DGA Match index.
	asset_dest_criticality	String	Does not apply to the DGA Match index.
	asset_dest_dept	String	Does not apply to the DGA Match index.
	asset_dest_hostname	String	Does not apply to the DGA Match index.
	asset_dest_ip	String	Does not apply to the DGA Match index.
	asset_dest_location	String	Does not apply to the DGA Match index.
	asset_dest_vulnerability	String	Does not apply to the DGA Match index.
	asset_src_criticality	String	Does not apply to the DGA Match index.
	asset_src_dept	String	Does not apply to the DGA Match index.
Hostname	asset_src_hostname	String	Does not apply to the DGA Match index.
	asset_src_ip	String	Does not apply to the DGA Match index.
	asset_src_location	String	Does not apply to the DGA Match index.
	asset_src_vulnerability	String	Does not apply to the DGA Match index.
Classification	classification	String	Does not apply to the DGA Match index.
Confidence	confidence	Numeric	Does not apply to the DGA Match index.
Count	count	Numeric	Aggregated number of events that matched the search criteria.
Country	country		Does not apply to the DGA Match index.
Created	date_first	Date	Does not apply to the DGA Match index.
Modified	date_last	Date	Does not apply to the DGA Match index.
	dcid	String	ID of the Link from which event was received.
Tags	detail	String	Does not apply to the DGA Match index.
DGA Probability	dga_prob	Numeric	Probability based on Anomali Security Analytics's DGA algorithm that the domain in the event is a DGA domain.
DGA TAG	dga_tag	String	Does not apply to the DGA Match index.
Action	event.action	String	Relevant for firewall and web proxy events Event log action taken by the source device; for example, `Deny`, `Accept`.
Application	event.app	String	The application detected. Example: ProcDump
Bytes In	event.bytes_in	Numeric	How many bytes received by a network interface. Example: 347
Bytes Out	event.bytes_out	Numeric	How many bytes transmitted by a network interface. Example: 665
Category	event.category	String	Relevant for AWS VPC and Microsoft Defender logs. Traffic direction: ingress or egress.
Command Line	event.command_line	String	The full command string of the spawned process. Example: `"\"procdump.exe\" -ma ls"`
Destination	event.dest	String	Event log destination data. The `event.dest` value populated from event logs is: An IP address—for example, `192.0.2.1`. A fully qualified domain name or registered domain name (second-level domain)—for example, `www.google.com` or `google.com`. Host and domain data extracted from URL data. For example, if Security Analytics receives an event log with a destination URL `http://www.example.com/somepath/34839/jk30jf`, Security Analytics populates `event.dest` with the extracted host and domain `www.example.com`. Indicators that have IP or Domain value types can match `event.dest` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.dest` values.
Destination IP	event.dest_ip		Event log destination IP address. The `event.dest_ip` value populated from event logs is an IP address—for example, `192.0.2.1`. Indicators that have IP value types can match `event.dest_ip` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.dest_ip` values.
Destination Port	event.dest_port	Numeric	Does not apply to the DGA Match index.
	event.ds_id		Does not apply to the DGA Match index.
Data Source Type	event.ds_type	String	Event log data source type. Examples: az_sentinel, qradar
Event ID	event.event_id	String	A Windows identification number that specifies the event type. Example: 4624
Event Name	event.event_name	String	The name of an event. Example: DnsRequest, ProcessRollup2
File Hash	event.file_hash	String	Event log file hash field. For example, an endpoint management application might write a log that contains file hash values. The `event.filehash` value populated from event logs is a hash value—for example, `69efa658c59d884c0cd6164cbb61d6d0cb0174355dc9c69327dfb76237c9c9c4`. Indicators that have Hash value types can match `event.filehash` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.filehash` values.
	event.file_hash2	String	A log might have multiple file hash fields.
	event.file_hash3	String	A log might have multiple file hash fields.
File Name	event.file_name	String	Does not apply to the DGA Match index.
Host	event.host	String	Event log hostname field. For example, for events ingested from Splunk Link, the value for `event.host` is the hostname of the Splunk indexer that forwarded the event.
Image	event.image	String	The executable name of the process. Sigma name: Image, ProcessName, OriginalFileName, TargetImage, TargetFileName Example: svchost.exe
Message ID	event.message_id	String	The globally-unique message identifier. Example: 123e4567-e89b-12d3-a456-426655440000
Original File Name	event.original_file_name	String	Original name of the file that was changed. Example: "test.pdf"
Parent Command Line	event.parent_command_line	String	The full command string of the parent process. Example: C:\Windows\System32\svchost.exe -k WerSvcGroup
Parent Image	event.parent_image	String	The executable name of the parent process. Example: notepad.exe
Parent Process ID	event.parent_process_id	String	The numeric identifier of the process assigned by the operating system. Example: 4834
Platform	event.platform	String	The operating system of the asset. Sigma name: Platform Example: win, mac, linux
Parent Process ID	event.parent_process_id	String	The numeric identifier of the process assigned by the operating system. Example: 4834
Protocol	event.protocol	String	Relevant for firewall and web proxy events Event log protocol field. The value for `event.protocol` is the network protocol used to make the connection to the source device—for example `http`.
DNS Query	event.query	String	The domain that needs to be resolved in a DNS query. Example: www.google.com Note: Correlated with indicators of type domain.
Email Receiver	event.receiver	String	Does not apply to the DGA Match index.
Record Type	event.record_type	String	The DNS resource record type. Example: A, CNAME, MX, NS, PTR, AAAA
Registry Key	event.reg_key	string	Registry key that the recorded action was applied to. Sigma name: TargetObject Example: HKEY_LOCAL_MACHINE\SOFTWARE\RegisteredApplications
Registry Value Name	event.reg_value_name	string	Name of the registry value that the recorded action was applied to. Example: "Wordpad"
Registry Value Data	event.reg_value_data	string	Data of the registry value that the recorded action was applied to. Example: Software\Microsoft\Windows\CurrentVersion\Applets\Wordpad
Email Sender	event.sender	String	Relevant for email-specific events Event log sender field. The value for `event.sender` is the sender's email address, as specified in the From: field of the email—for example, `user@example.com`. Indicators that have Email value types can match `event.sender` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.sender` values.
Source Type	event.sourcetype	String	Source device type that generated the event.
Event Source	event.src	String	Event log source IP field. The `event.src` value populated from event logs is: An IP address—for example, `192.0.2.1`. A fully qualified domain name or registered domain name (second-level domain)—for example, `www.google.com` or `google.com`. Indicators that have IP type or Domain value types can match `event.src` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.src` values.
Source IP	event.src_ip	String	Does not apply to the DGA Match index.
Source Port	event.src_port	Numeric	Does not apply to the DGA Match index.
Event Time	event_time	Date	Event log timestamp field. The value for `event.time` is timestamp when the event was generated on the source device—for example, `2021-07-28T19:20:00.000Z`. Notes: In the results table, the time displayed is UTC time, adjusted for the browser time zone. When you form search expressions, specify UTC time in the following format: <YYYY><MM><DD>T<HH>:<MM>:<SS>. The date part and the time part are separated by a capital T. You do not need to include T and the time values if you intend to search by date only. The following is an example of UTC time format: `2022-01-05T00:00:00` You can also specify a time zone offset for searches where time zone precision is important. In the following example, the time zone offset is the `-08:00` at the end: `2022-01-05T00:00:00-08:00` In exported results, the date and time are displayed as epoch time values. The following example shows the previous date-time example in epoch format: `1641342478`
Title	event.title	String	Alert title (azure security alert).
URL	event.url.raw	String	Relevant for firewall and web proxy events Event log URL field. The value for `event.url` is populated from URL data having the form `http(s)://<FQDN (registered domain)>:[<port>]/[path]?[<query_params>]`—for example, `http://www.example.com:443/` or `http://www.example.com/somepath/34839/jk30jf`. Indicators that have URL value types can match `event.url` values. See ThreatStream Indicator Types for a reference that includes indicator value types and descriptions. By default, Security Analytics correlates indicators and `event.url` values.
User	event.user	String	Relevant for firewall and web proxy events Event log user field. The value for event.user is the username associated with an authenticated HTTP(S) connection request—for example, `user@example.com`.
User Agent	event.user-agent	String	Does not apply to the DGA Match index.
Indicator	indicator	String	Value of the indicator. This field contains the value that was matched and is always equal to the value of srcip, url, domain, md5, or email fields.
	indicator_type	String	Data type of the indicator. Possible values: ip, domain, url, email, md5
iType	itype	String	Does not apply to the DGA Match index.
Latitude	lat	Numeric	Does not apply to the DGA Match index.
Location	loc		Does not apply to the DGA Match index.
Longitude	lon	Numeric	Does not apply to the DGA Match index.
Malware Family	malware_family	String	One or more public malware family names expected to have originated the domain. Note: Malware families are often known by multiple names or aliases. The name shown in the Anomali Security Analytics UI is one of those names or aliases.
	originator	Numeric	Indicates whether the connection was inbound or outbound 0 indicates inbound 1 indicates outbound
Severity	severity	String	Does not apply to the DGA Match index.
	source.raw	String	Does not apply to the DGA Match index.
Feed	source_feed_id	Numeric	Does not apply to the DGA Match index.
Event Source Host	src_host	String	An event source host value derived from the event.src field.
State	state	String	Current state of the domain either as determined by the Anomali Security Analytics's DGA engine or marked by user. Possible values: active, benign, falsepos
	trusted_circle_ids	Numeric	Does not apply to the DGA Match index.
	trusted_circle_names	String	Does not apply to the DGA Match index.

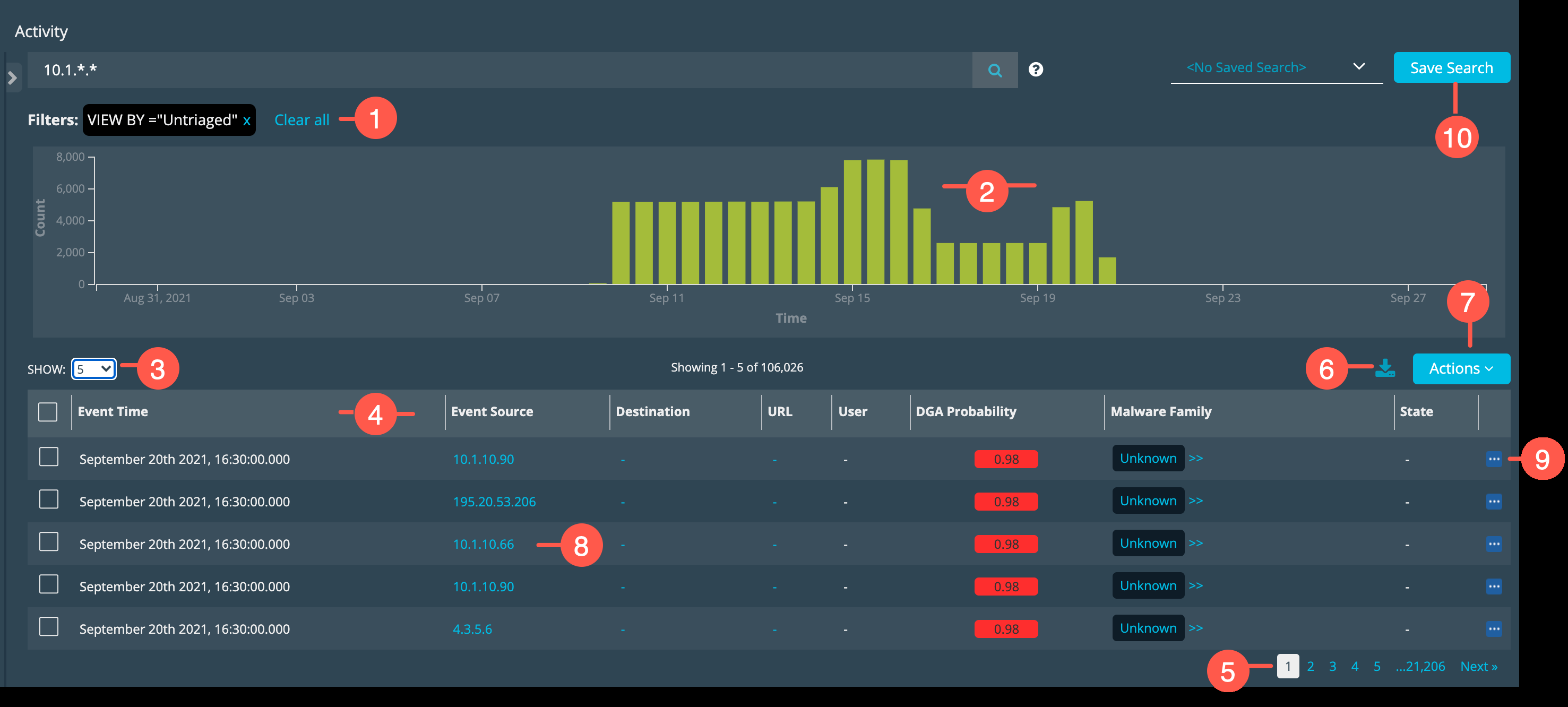

DGA Match Results Table

The following figure identifies the UI elements that you use to manipulate the displayed results to find information about DGA matches.

	Review and reset applied filters.
	Observe the graph of matches over time.
	Select a number of rows per page.
	Click the column header to sort the rows in ascending or descending order according to values in the column. Click a column header divider and drag it to make a column wider or more narrow.
	Go to the next page of results or another page by page number.
	Export the results table. See Export Search Results.
	Perform an action related to the selected row. See Perform Actions.
	Click a hyperlinked value and select an option to run a Security Analytics retrospective search or search VirusTotal.
	Display the Details page for the matched event. See View Match Details.
	Create a Saved Search configuration. See Saved Searches.

Perform Actions

The Action menu above the results table allows you to perform the following actions.

Action	Description
Configure Fields	Select this option to configure the fields (columns) that appear in the results table.
Retrospective Search	Select this option to perform a retrospective search for the indicator correlated with the event.
Investigate	Select this option to add the result to a ThreatStream investigation. Configure one of the following choices: Create Investigation: Specify a name for the investigation and select an assignee to create a ThreatStream investigation. Add to Investigation: Search or browse to find and then select a ThreatStream investigation. Note: For information about ThreatStream investigations, refer to the ThreatStream online help.
Mark As False Positive	Select this option to add the indicator to the DGA exclude list.

View Match Details

Click the Details icon in the right-most column to display the details page.

The following figure identifies the UI elements that you use to find information on the DGA Match Details page.

	Review the indicator details and event details correlated in Security Analytics.
	Use the tabs to learn more: Asset: View correlated asset details (if applicable). Raw Logs: View more event data. When you click Get Raw Logs: Security Analytics sends a drilldown query to log sources that support drill down queries. The source sends the raw log in response. Raw logs are available as long as they remain available on the log source system. Security Analytics retrieves event log data from Match storage for log sources that do not support drilldown queries. The fields in logs stored in Match have been normalized to Match event fields. Security Analytics returns no results if the associated Anomali Link is inactive.
	Select Mark As False Positive or click Actions and select Add to Investigation to add the log to a ThreatStream investigation. Note: For information about ThreatStream investigations, refer to the ThreatStream online help.
	Click the X to exit the details page and return to the results table.
