Configuring Dashboard Settings (Classic UI)

To access dashboard settings, click Edit > on the dashboard you want to configure. On the Settings page, dashboard owners and Org Admin users can configure general dashboard settings, add or modify dashboard variables, and edit the JSON Model of the dashboard.

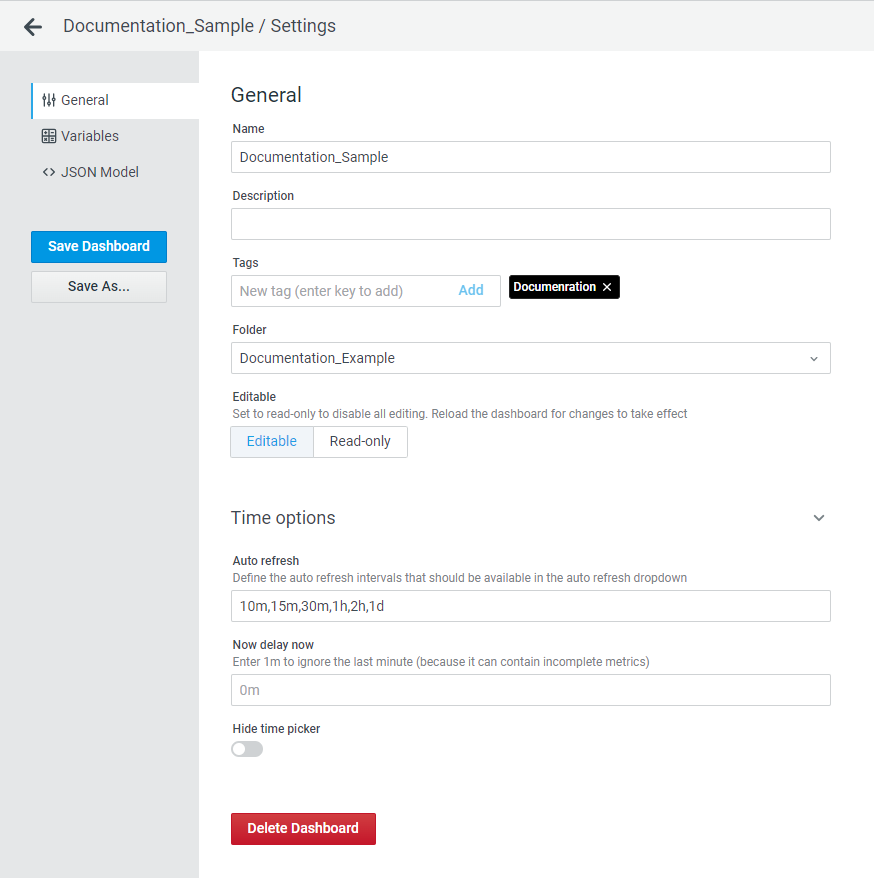

Configuring General Settings

On the General tab of the dashboard settings, you can take the following actions:

  • Modify the dashboard name and description

  • Add or remove tags

  • Change the folder in which the dashboard is stored

  • Make the dashboard editable or read-only

  • Define auto-refresh intervals

  • Hide or unhide the time picker

  • Delete the dashboard

To configure general dashboard settings:

  1. Click Edit on the dashboard.

  2. Click the settings icon () on the dashboard.

  3. Make the required changes.

  4. Click Save Dashboard to save the dashboard changes.
    Click Save As to create a new dashboard based on the configured dashboard. You can modify the dashboard name, select a folder for storing the new dashboard, and copy tags, if necessary.

  5. Reload the changes for the dashboard to take effect.

Adding Dashboard Variables

Variables enable more interactive and dynamic dashboards. Instead of hard-coding things like server or sensor names in your metric queries, you can use variables in their place. Variables are displayed at the top of the dashboard, making it easy to change the data displayed on your dashboard.

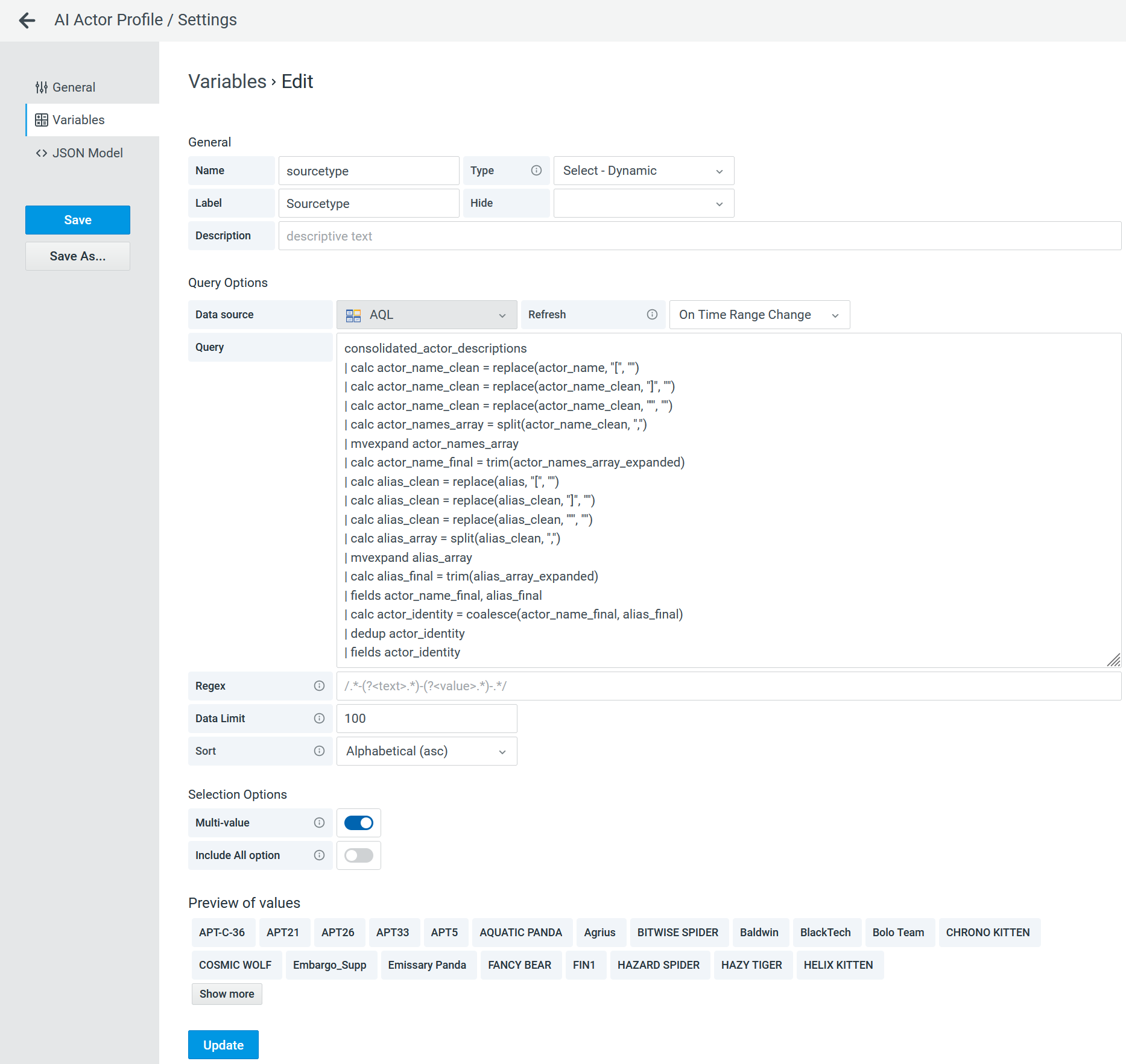

To add a dashboard variable:

  1. Click Edit on the dashboard.

  2. Click the settings icon () on the dashboard.

  3. Click the Variables tab.

  4. Click Add variable.

  5. Configure the variable settings.

    6. Note: By default, dashboard dropdown displays 100 results. You can increase this limit up to 5,000, but will encounter longer loading times and overall slower performance.

  6. Click Update.

  7. Click Save Dashboard.

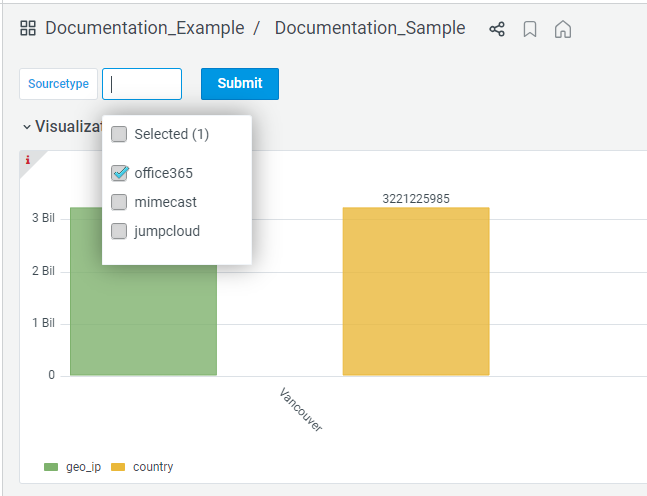

The new variable appears at the top of the dashboard.

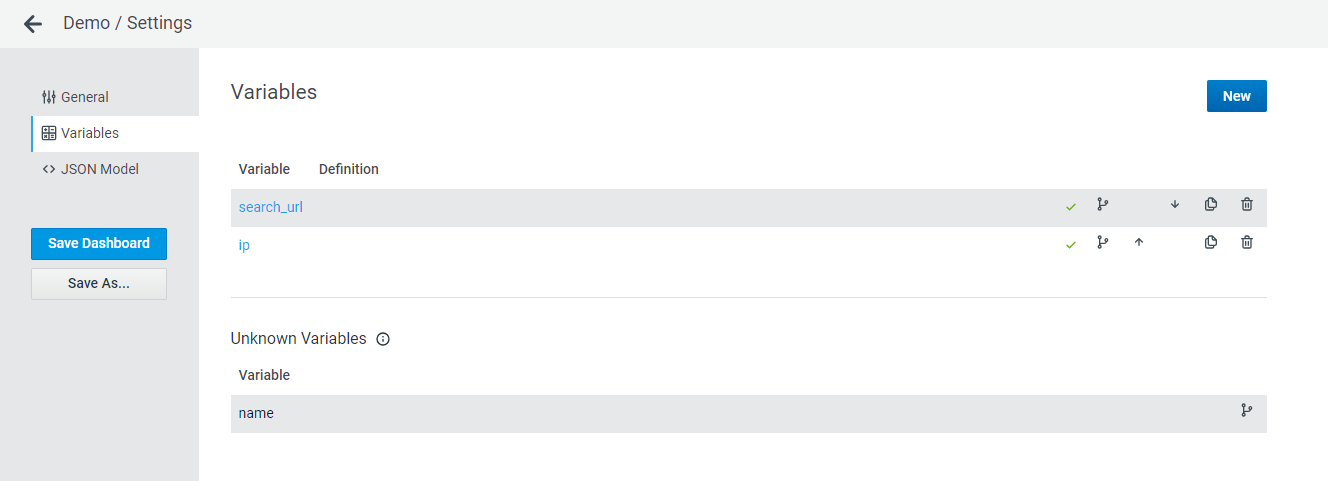

All created variables can also be found on the Variables tab of the dashboard Settings page.

On the Variables tab, you can apply the following actions to variables:

  • Configure variable settings by clicking on the variable of interest

  • View variable usage by hovering your mouse over the merged branch () icon

  • Re-arrange the order in which the variables are displayed on the dashboard by using the up () and down () arrows.

  • Duplicate variables by clicking the duplicate () icon.

  • Delete variables by clicking the delete () icon.

  • Create a new variable by clicking New.

Configuring JSON Model

To configure the dashboard JSON Model:

  1. Click Edit on the dashboard.

  2. Click the settings icon () on the dashboard.

  3. Click the < > JSON Model tab.

  4. Make the required changes in the objects, and click Save Changes.

After configuring the dashboard JSON Model, click Save Dashboard to save the changes.

Click Save As to create a new dashboard based on the configured JSON Model. You can modify the dashboard name, select a folder for storing the new dashboard, and copy tags, if necessary.

Configuring Variable and Panel Dependencies

On the < > JSON Model tab of the Settings page, you can configure variable and panel dependencies. For example, you can define which Sweep Type options to display if Sweep Selector is set to Sweep Select.

Variables can also help you improve dashboard data visibility by allowing you to show or hide panels based on variable options specified in panel dependencies.

To configure variable dependencies:

  1. Click Edit on the dashboard.

  2. Click the settings icon () on the dashboard.

  3. Click the < > JSON Model tab.

  4. In the templating object of the dashboard JSON Model, add the depends property to the variable definition to configure dependencies.

  5. Configure dependencies of all variables.

  6. Click Save Changes.

To show/hide a panel:

  1. Click Edit on the dashboard.

  2. Click the settings icon () on the dashboard.

  3. Click the < > JSON Model tab.

  4. In the panels object of the dashboard JSON Model, locate the panel whose visibility you want to configure.

  5. In the depends property, list all variable options that, if selected, will make the panel visible.
    For example, the image below demonstrates that the Panel Title panel is visible only when the radio_type variable is set to email or url. This means that when other variable options are selected, the panel will be hidden on the dashboard.

    If dependencies are not specified, the panel will always be visible.

  6. Click Save Changes.
